The ball mill is a key equipment for grinding materials, widely used in powder-making production line such as cement, silicate sand, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. Ball mill can grind various ores and materials with dry type or wet type.
The ball mill is a key equipment for grinding materials, widely used in powder-making production line such as cement, silicate sand, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. Ball mill can grind various ores and materials with dry type or wet type.

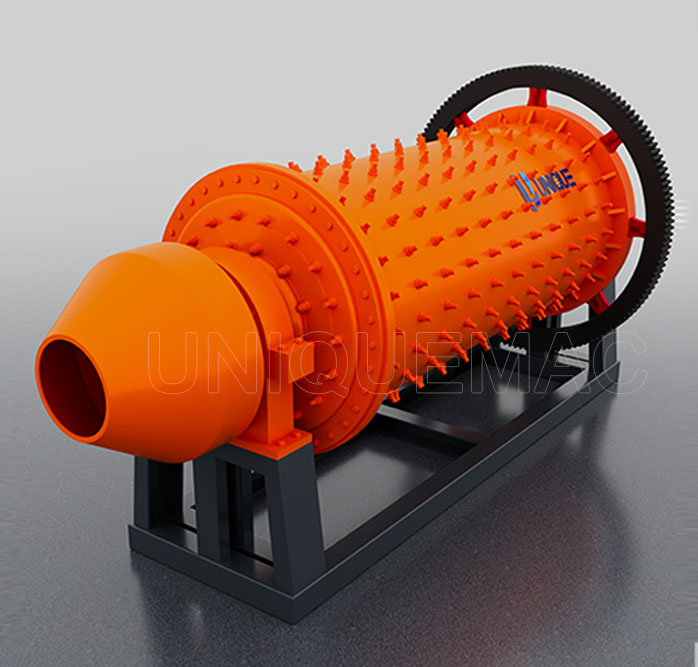

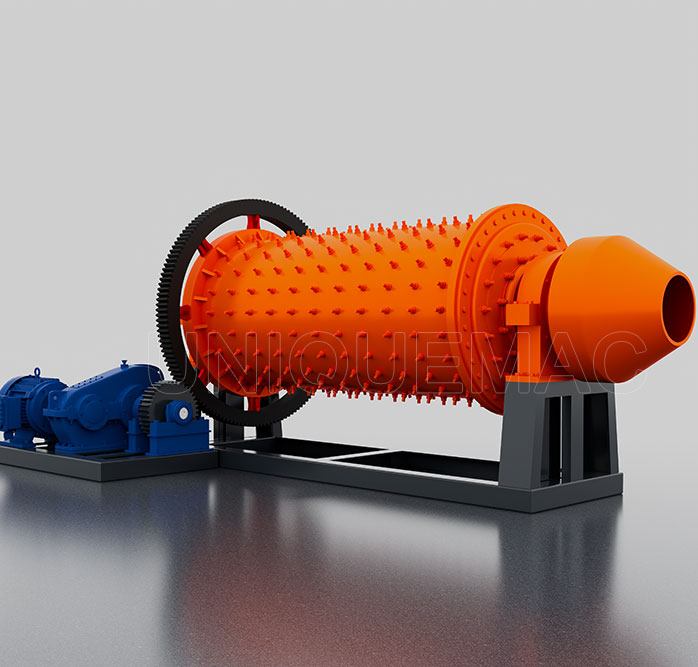

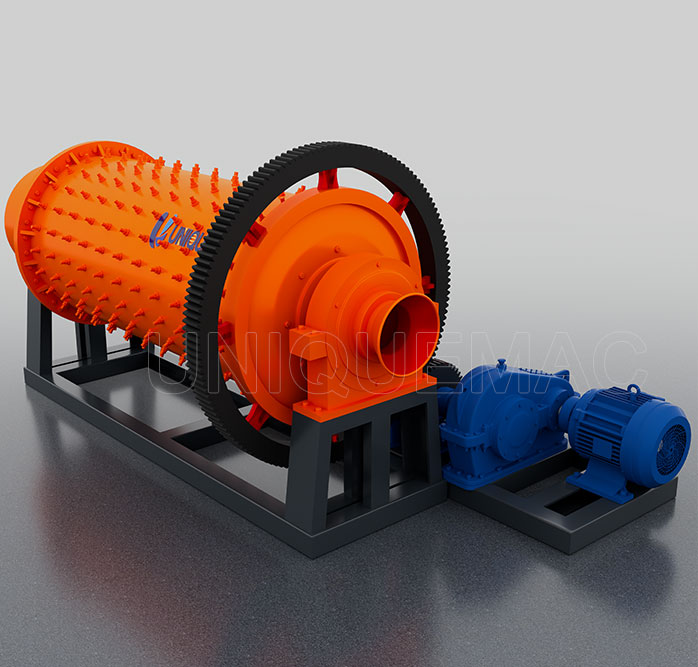

The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbling process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
Moreover, according to different materials and discharging methods, there are dry ball mill and wet ball mills for choice.
|
Model |
Cylinder RPM |
Ball load |
Feeding size |
Discharge size |
Capacity |
Motor power |
Weight |
|
Ф900×1800 |
36-38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
5.5 |
|
Ф900×3000 |
36 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
6.7 |
|
Ф1200×2400 |
36 |
3 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
|
Ф1200×3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
|
Ф1200×4500 |
32.4 |
5 |
≤25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
|
Ф1500×3000 |
29.7 |
7.5 |
≤25 |
0.074-0.4 |
2-5 |
75 |
16.8 |
|
Ф1500×4500 |
27 |
11 |
≤25 |
0.074-0.4 |
3-6 |
110 |
21 |
|
Ф1500×5700 |
28 |
12 |
≤25 |
0.074-0.4 |
3.5-6 |
130 |
25.8 |
|
Ф1830×3000 |
25.4 |
11 |
≤25 |
0.074-0.4 |
4-10 |
130 |
29 |
|
Ф1830×4500 |
25.4 |
15 |
≤25 |
0.074-0.4 |
4.5-12 |
155 |
35.5 |
|
Ф1830×6400 |
24.1 |
21 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
43 |
|
Ф1830×7000 |
24.1 |
23 |
≤25 |
0.074-0.4 |
7.5-17 |
245 |
43.8 |
|
Ф2100×3000 |
23.7 |
15 |
≤25 |
0.074-0.4 |
6.5-36 |
155 |
34.8 |
|
Ф2100×4500 |
23.7 |
24 |
≤25 |
0.074-0.4 |
8-43 |
245 |
38 |
|
Ф2100×7000 |
23.7 |
26 |
≤25 |
0.074-0.4 |
8-48 |
280 |
56.6 |
|
Ф2200×4500 |
21.5 |
27 |
≤25 |
0.074-0.4 |
9-45 |
280 |
51.8 |
|
Ф2200×6500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
14-26 |
380 |
60 |
|
Ф2200×7000 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-28 |
380 |
62 |
|
Ф2200×7500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-30 |
380 |
64.8 |
|
Ф2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
7-50 |
245 |
54 |
|
Ф2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
|
Ф2700×4000 |
20.7 |
40 |
≤25 |
0.074-0.4 |
12-80 |
380 |
94 |
|
Ф2700×4500 |
20.7 |
48 |
≤25 |
0.074-0.4 |
12-90 |
480 |
102 |
|
Ф3200×4500 |
18 |
65 |
≤25 |
0.074-0.4 |
- |
800 |
137 |
|
Ф3600×4500 |
17 |
90 |
≤25 |
0.074-0.4 |
- |
850 |
158 |
|
Ф3600×6000 |
17 |
110 |
≤25 |
0.074-0.4 |
- |
1250 |
175 |
|
Ф3600×8500 |
18 |
131 |
≤25 |
0.074-0.4 |
45.8-256 |
1800 |
252 |
|
Ф4000×5000 |
16.9 |
121 |
≤25 |
0.074-0.4 |
45-208 |
1500 |
203 |
|
Ф4000×6000 |
16.9 |
146 |
≤25 |
0.074-0.4 |
65-248 |
1600 |
218 |
|
Ф4000×6700 |
16.9 |
149 |
≤25 |
0.074-0.4 |
45-252 |
1800 |
238 |
|
Ф4500×6400 |
15.6 |
172 |
≤25 |
0.074-0.4 |
54-306 |
2000 |
280 |
|
Ф5030×6400 |
14.4 |
216 |
≤25 |
0.074-0.4 |
68-386 |
2500 |
320 |
|
Ф5030×8300 |
14.4 |
266 |
≤25 |
0.074-0.4 |
88-500 |
3300 |
403 |
