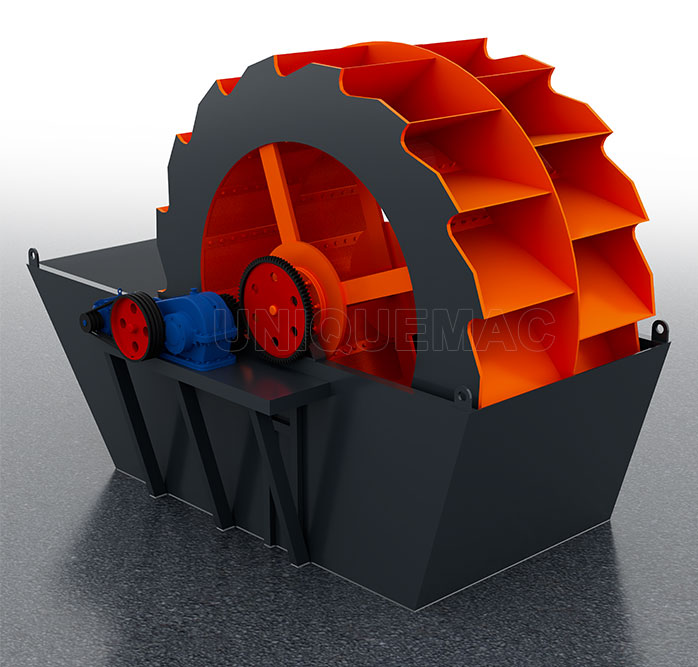

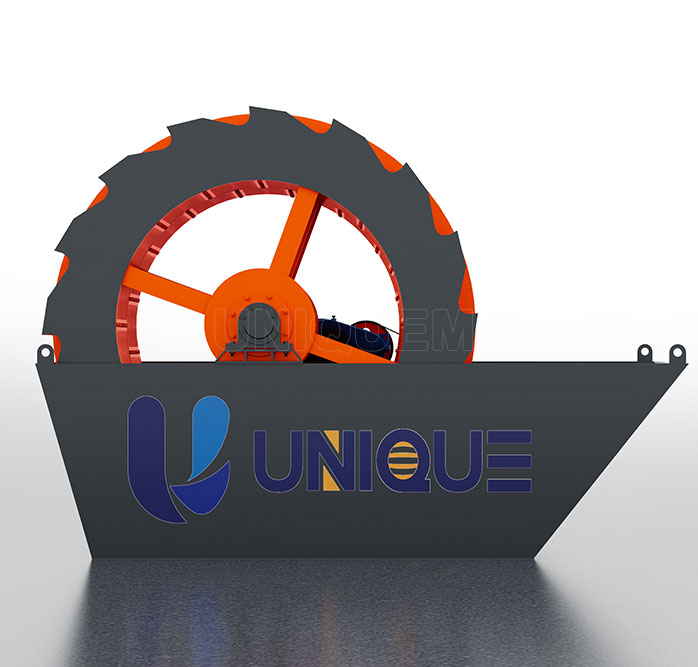

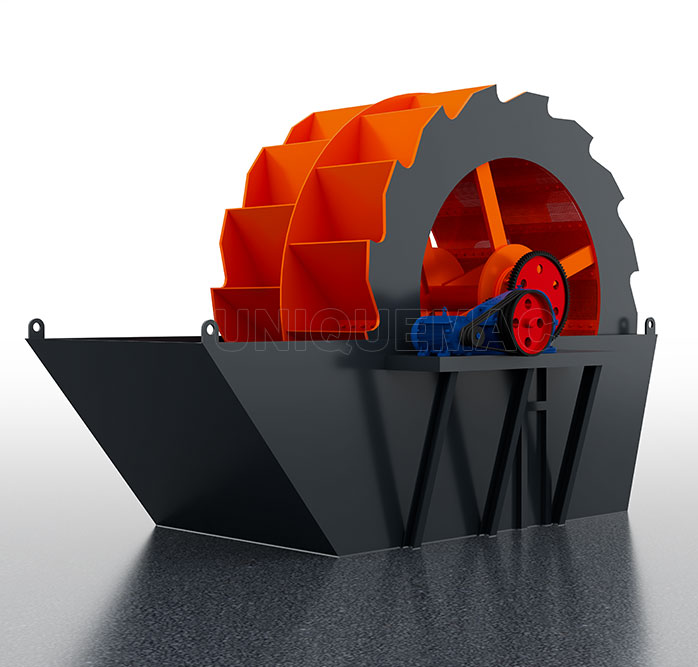

Wheel type sand washer a professional cleaning devices for less than 8mm sand grain. Simple structure, impeller drive bearing unit with water and by water isolation material, to avoid bearing due to flooding, sand and pollutants cause to the damage phenomenon.
Wheel type sand washer a professional cleaning devices for less than 8mm sand grain. Simple structure, impeller drive bearing unit with water and by water isolation material, to avoid bearing due to flooding, sand and pollutants cause to the damage phenomenon.
In the job, fine sand and stone powder wastage is minimal. In addition, the screen has almost no wearing parts, long life, long-term without maintenance.
This machine's structure is simple. The impeller drive device is separated with water and the watered materiel avoiding that the bearing is damaged by Deeping in water, sand, or contamination.
This machine has obvious advantages compared with screw sand washer. The details are as follows:
The medium and fine sand are washed away less. The washed construction sand's gradation and modulus of fineness can get the standard which is regulated in national ' construction sand' and ' construction scree and gravel'.
There are almost no wearing parts except screen mesh.
|
Model |
Wheel Dia. (mm) |
Output (t/h) |
Motor (kw) |
Dimension (mm) |
Total weight (kg) |
|
XS-2200 |
2200 |
15~30 |
4 |
3150×1910×2280 |
3300 |
|
XS -2600 |
2600 |
20~50 |
5.5 |
3520×2390×2690 |
4600 |
|
XS -2900 |
2900 |
50~100 |
7.5 |
3820×2640×3200 |
6100 |
|
XS -3500 |
3500 |
120~200 |
11 |
4420×2930×3800 |
7900 |
